So You Want to Win a Kaggle Competition?

Machine Learning Models

Are growing in prevalence and efficacy in environmental science. What began in 1949 as an attempt to write a computer program that could play checkers [1] has grown into one of the fastest developing fields today. Machine learning is used to across multiple disciplines—from image recognition models designed to improve the speed of medical diagnoses [2] to the program that filters your spam from your normal inbox [3]—machine learning’s reach has spread far and wide. The study of our natural world and its processes is no exception.

Machine learning has allowed major advances in the environmental field as well. As data collection techniques only become more refined, frequent, and numerous, we need processing techniques that can match the scale of this data.

As part of a final project in Dr. Matteo Robbin’s Machine Learning in Environmental Science, we were tasked with optimizing a machine learning model that would predict dissolved inorganic carbon content (DIC) in a sample of seawater based on a number of other associated characteristics. This was held as part of a kaggle competiton where our evaluation metric was root mean squared error (rmse). The winner was determined based on which model had the smallest rmse on the private leaderboard. Overall, this assesses how accurate each model is at predicting DIC when generalizing to unseen data.

I will walk through my winning model for this competition: an extreme gradient boosted model (XGB) with bayesian hyperoptimization of parameters.

The Model Breakdown

eXtreme Gradient Boosting

Let’s go word by word through an extreme gradient boosted model and explain each piece.

• Boosted: Boosting is an ensemble method in which multiple weak decision trees are trained sequentially. In simpler terms, you train many “short” decision trees on top of each other and you use the residual error from the previous tree to train the following tree. This allows the model to iteratively optimize performance without a tendency to overfit.

• Gradient: Gradient refers to the idea of gradient descent, which is the optimization technique used to minimize the loss function. This starts to get into the math weeds, so I’ll link some resources for those who’d like more detail [4] [5]. But at it’s most conceptual, let’s imagine our parameter space as standing on top of a hill. If we look down, there are numerous different slopes and valleys that mark the terrain between the peak and the bottom of the hill. This “terrain variation” can be thought of as the unique parameter space of our model. Now, imagine I were to drop 100 ping pong balls from the top of this hill and I want to know which ball reached the bottom the fastest. The fastest ping pong boll can be thought of as akin to the gradient of our loss function. That is, gradient descent finds the direction of steepest increase to minimize the loss function.

• Extreme: Now that we have a conceptual understanding of gradient descent, there are many different ways you can set up your how your model finds the most optimum gradient. The term “extreme” comes from the popular xgboost library that is designed to be especially efficient and flexible. There are other types of gradient descent, like batch gradient descent or stochastic gradient descent [6], but XGB is a very common method due to its high performance, built-in regularization, and parallel computing capabilities.

hyperopt: Bayesian Hyperoptimization

Now that we have our model itself established, let’s talk about how I decided to select parameters for the model with hyperopt. hyperopt is a python library that uses bayesian optimization to find the best parameters. It has three main parts: an objective function, a domain space, and a search algorithm [7].

• Bayesian optimization: This is another area that gets into the weeds [8], but it can be thought of as a probabilistic, model-based technique to minimize a function. It’s quicker than a random search of parameters because it uses the posterior distribution to establish which parameter spaces are most worth exploring. In this way, the future parameter combinations are informed by the previous ones.
  • Objective function: This is the function we want our bayesian model to minimize. This function will take our input domain space and output the validation metric (in our case, RMSE). The objective function for this model is the XGB model discussed above. We want to minimize our error given that exact model construction, so naturally, we optimize our hyperparameters based on that model.
  • Domain space: The set of hyperparameters and their input values over which we want to search.
  • Optimization algorithm: The optimization algorithm used in this model is Tree of Parzen Estimators (TPE). This is where the Bayesian optimization discussed above actually happens.

At the end of the hyperopt process, we have a set of parameters that returns the smallest RMSE. Then, we can train our model on the best parameters.

Data

The data used in this model comes courtesy of Dr. Erin Satterthwaite at the California Cooperative Oceanic Fisheries Investigations(CalCOFI)

Metadata

• Lat_Dec: Observed Latitude in decimal degrees
• Lon_Dec: Observed Longitude in decimal degrees
• NO2uM: Micromoles Nitrite per liter of seawater
• NO3uM: Micromoles Nitrate per liter of seawater
• NH3uM: Micromoles Ammonia per liter of seawater
• R_TEMP: Reported (Potential) Temperature in degrees Celsius
• R_Depth: Reported Depth (from pressure) in meters
• R_Sal: Reported Salinity (from Specific Volume Anomoly, M³/Kg)
• R_DYNHT: Reported Dynamic Height in units of dynamic meters (work per unit mass)
• R_Nuts: Reported Ammonium concentration
• R_Oxy_micromol.Kg: Reported Oxygen micromoles/kilogram
• PO4uM: Micromoles Phosphate per liter of seawater
• SiO3uM: Micromoles Silicate per liter of seawater
• TA1.x: Total Alkalinity micromoles per kilogram solution
• Salinity1: Salinity (Practical Salinity Scale 1978)
• Temperature_degC: Water temperature in degrees Celsius
• DIC: Dissolved Inorganic Carbon micromoles per kilogram solution

The Coding Breakdown

# Load basic libraries
import pandas as pd
import seaborn as sns
import numpy as np
import matplotlib.pyplot as plt
import statistics as stats
import time

# XGB libraries
from sklearn.model_selection import train_test_split,RandomizedSearchCV, cross_val_score, KFold
import xgboost as xgb
from hyperopt import hp, fmin, tpe, Trials, STATUS_OK
from xgboost import XGBRegressor
from sklearn.metrics import mean_squared_error
from scipy.stats import uniform, randint
from sklearn.preprocessing import StandardScaler

Import Data and Explore

# Import data
train_df = pd.read_csv("~/MEDS/website/haylee360.github.io/posts/2025-03-30-kaggle/data/train.csv")
test_df = pd.read_csv("~/MEDS/website/haylee360.github.io/posts/2025-03-30-kaggle/data/test.csv")

# Fix column name error
test_df = test_df.rename(columns={'TA1':'TA1.x'})

# Remove NA column from training data
train_df = train_df.drop(columns='Unnamed: 12')

# Get a feel for feature summary stats
train_df.describe()

	id	Lat_Dec	Lon_Dec	NO2uM	NO3uM	NH3uM	R_TEMP	R_Depth	R_Sal	R_DYNHT	R_Nuts	R_Oxy_micromol.Kg	PO4uM	SiO3uM	TA1.x	Salinity1	Temperature_degC	DIC
count	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000	1454.000000
mean	727.500000	33.271315	-120.216359	0.062252	18.885812	0.085062	10.882772	193.451857	224.527854	0.374726	0.085062	146.507682	1.644869	29.171437	2256.054409	33.764094	10.901307	2150.468820
std	419.877958	0.891261	1.719873	0.284517	14.414059	0.190922	3.702193	347.486135	88.427864	0.365226	0.190922	92.421033	1.024450	28.628682	35.215125	0.398409	3.684964	113.163645
min	1.000000	30.417500	-124.000670	0.000000	0.000000	0.000000	1.250000	1.000000	44.900000	0.003000	0.000000	0.000000	0.170000	0.000000	2181.570000	32.840000	1.520000	1948.850000
25%	364.250000	32.654580	-121.844853	0.000000	1.877500	0.000000	8.185000	30.000000	149.475000	0.107000	0.000000	59.170572	0.490000	3.585000	2230.032500	33.417000	8.215000	2025.818652
50%	727.500000	33.420670	-120.025080	0.014000	22.600000	0.010000	9.900000	101.000000	202.000000	0.293500	0.010000	136.267250	1.820000	24.150000	2244.020000	33.746800	9.910000	2166.630000
75%	1090.750000	34.150520	-118.630000	0.050000	31.500000	0.090000	13.667500	252.000000	299.075000	0.577750	0.090000	244.636050	2.560000	45.675000	2279.175000	34.149450	13.667500	2252.657500
max	1454.000000	34.663330	-117.308600	8.190000	42.000000	2.750000	22.750000	3595.000000	485.900000	3.226000	2.750000	332.347700	4.280000	175.200000	2433.710000	34.676000	22.750000	2367.800000

# Check NAs
train_df.isna().sum()

id                   0
Lat_Dec              0
Lon_Dec              0
NO2uM                0
NO3uM                0
NH3uM                0
R_TEMP               0
R_Depth              0
R_Sal                0
R_DYNHT              0
R_Nuts               0
R_Oxy_micromol.Kg    0
PO4uM                0
SiO3uM               0
TA1.x                0
Salinity1            0
Temperature_degC     0
DIC                  0
dtype: int64

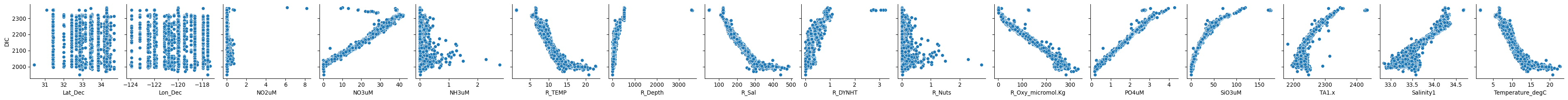

# Visualize feature relationships
sns.pairplot(train_df, y_vars=['DIC'], x_vars= train_df.columns[1:-1], diag_kind='kde')

Model Selection: XGB with Hyperoptimization

The relationships look mostly linear, but we’re working with a lot of features. I figured gradient boosting would be a good approach.

# Assign features
X = train_df.drop(columns=['id', 'DIC'], axis=1)
y = train_df['DIC']
X_test = test_df.drop(columns=['id'], axis=1)

# Scale the data
scaler = StandardScaler()
X_scaled = pd.DataFrame(scaler.fit_transform(X), columns=X.columns)
# For predictions later on...
X_test_scaled = pd.DataFrame(scaler.transform(X_test), columns=X_test.columns)

Define Objective Function

# Set up kfold cross validation
kf = KFold(n_splits=5, shuffle=True, random_state=808)

# Define objective function to minimize
def objective(params):
    model = XGBRegressor(
        n_estimators=int(params["n_estimators"]),
        learning_rate=params["learning_rate"],
        max_depth=int(params["max_depth"]),
        min_child_weight=params["min_child_weight"],
        subsample=params["subsample"],
        colsample_bytree=params["colsample_bytree"],
        gamma=params["gamma"],
        reg_alpha=params["reg_alpha"],
        reg_lambda=params["reg_lambda"],
        random_state=808
    )

    # Perform cross-validation
    scores = -cross_val_score(model, X_scaled, y, cv=kf, scoring='neg_root_mean_squared_error', n_jobs=-1)

    # Average RMSE across folds
    rmse = np.mean(scores)

    return {'loss': rmse, 'status': STATUS_OK}

Create Domain space

# Create hyperparameter space
space = {
    "n_estimators": hp.quniform("n_estimators", 100, 1200, 10),
    "learning_rate": hp.uniform("learning_rate", 0.005, 0.3),
    "max_depth": hp.quniform("max_depth", 3, 20, 1),
    "min_child_weight": hp.uniform("min_child_weight", 1, 10),
    "subsample": hp.uniform("subsample", 0.5, 1.0),
    "colsample_bytree": hp.uniform("colsample_bytree", 0.5, 1.0),
    "gamma": hp.uniform("gamma", 0, 10),
    "reg_alpha": hp.uniform("reg_alpha", 0, 1),
    "reg_lambda": hp.uniform("reg_lambda", 0, 1),
}

Run Optimization Algorithm

# Run hyperopt
trials = Trials()
best_params = fmin(
    fn=objective,
    space=space,
    algo=tpe.suggest,
    max_evals=200,
    trials=trials,
    rstate=np.random.default_rng(808)
)

Train the Model on the Best Parameters

Now that we’ve optimized all of our relevant parameters, we can train our XGB model. We use **best_params to unpack the best parameters from before and initialize an XGBRegressor model.

# Convert int hyperparameters to fix type error
best_params["n_estimators"] = int(best_params["n_estimators"])
best_params["max_depth"] = int(best_params["max_depth"])

# Initialize best hyperopt model
xgb_hyper = XGBRegressor(**best_params, eval_metric='rmse', random_state=808)

# Fit model
xgb_hyper.fit(X_scaled, y)

# Predict on test data
y_pred_hyper = xgb_hyper.predict(X_test_scaled)

# Get feature importance
feat_imp_hyper = pd.DataFrame({'Feature': X_scaled.columns, 'Importance': xgb_hyper.feature_importances_})

# Sort by importance
feat_imp_hyper = feat_imp_hyper.sort_values(by="Importance", ascending=False)
feat_imp_hyper

Feature	Importance
SiO3uM	0.439688
PO4uM	0.375247
R_Oxy_micromol.Kg	0.099113
R_Sal	0.032475
NO3uM	0.017117
TA1.x	0.015256
Salinity1	0.012926
R_Depth	0.004667
NO2uM	0.000781
Temperature_degC	0.000693
R_TEMP	0.000607
R_DYNHT	0.000389
NH3uM	0.000282
Lat_Dec	0.000281
Lon_Dec	0.000257
R_Nuts	0.000222

Now that we’ve generated our predictions on the test data, all we need to do is add those to their associated ID’s in the test_df and export to csv for submission to the competition.

# Add DIC to test dataset
test_df['DIC'] = y_pred_hyper
submission = test_df[['id', 'DIC']]
submission.head()

	id	DIC
0	1455	2170.5910
1	1456	2194.9880
2	1457	2326.0432
3	1458	1991.1729
4	1459	2147.3965

# Export for submission
submission.to_csv('submission.csv', index=False)

And just like that, you can have a competition-winning machine learning model! A very big thanks to Professor Robbins for his guidance in this course, Dr. Satterthwaite for her wonderful guest lecture, and Annie Adams for her assistance all quarter.
